📱RoboPocket: Improve Robot Policies Instantly with Your Phone

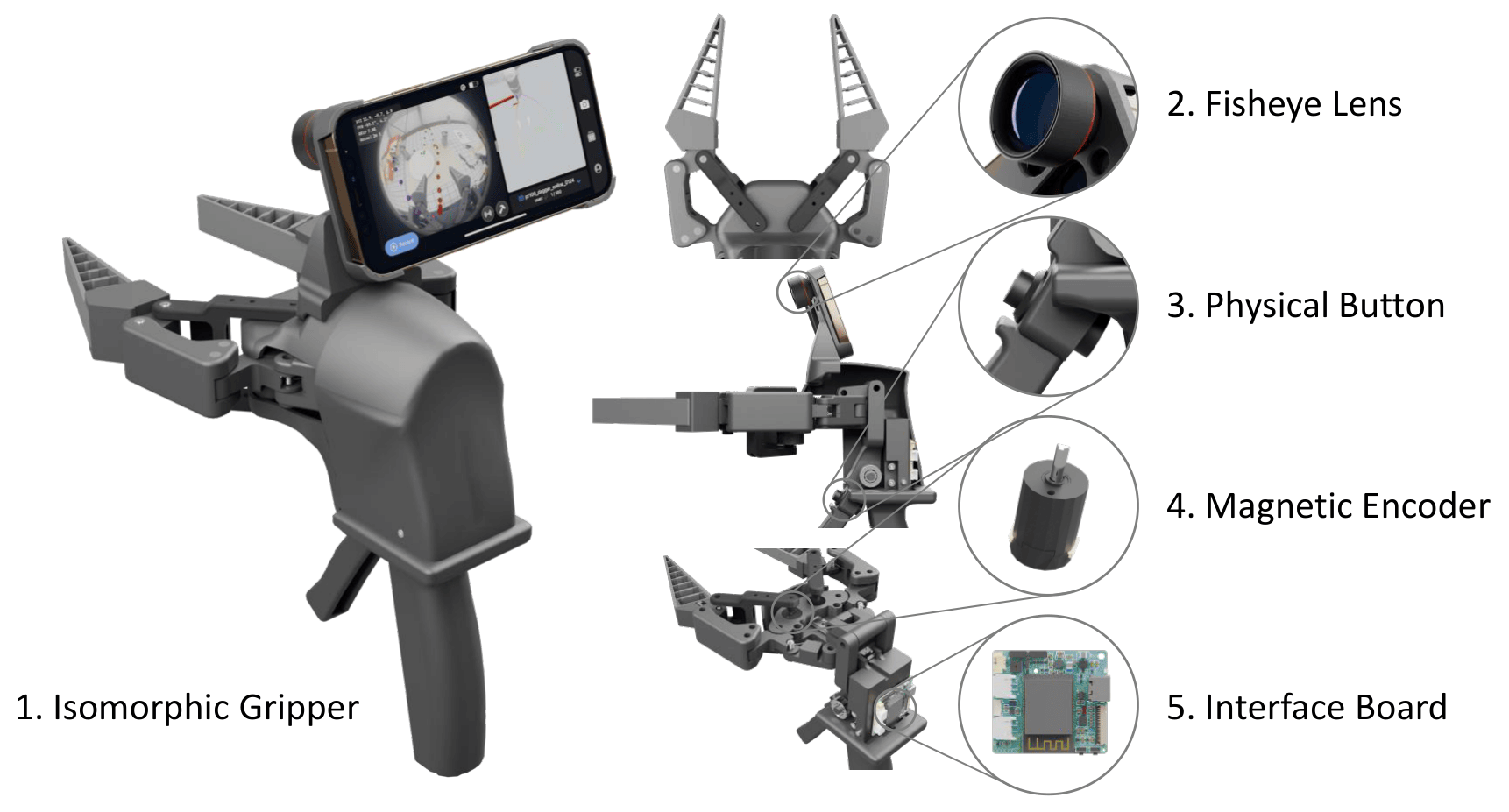

The hardware design is governed by three architectural principles:

1. Real-Time Interaction Interface: We utilize a commercial iPhone Pro as a high-performance edge-compute hub, providing the necessary computing power to run simultaneous VIO, kinematic solving, and AR rendering at 60Hz.
2. Hardware Isomorphism: Our adaptive gripper replicates the Robotiq 2F-85 including its underactuated passive DoF. We also adopt a leverage-based linkage to amplify human finger input. The BOM cost is about $70.
3. Sensory Completeness: We augment the iPhone with a custom fisheye lens mount for visual context expansion, and an ESP32-based Bluetooth interface with a magnetic encoder for gripper width capture.

The software pipeline acts as an active supervisor through two mechanisms:

1. Data Quality via Active Verification: A multi-stage monitor validates SLAM tracking stability and kinematic feasibility in real time, with invalid frames instantly flagged via visual/haptic feedback. Besides, an AR Trajectory Replay feature renders the end-effector trajectory over the live view for immediate post-collection verification.

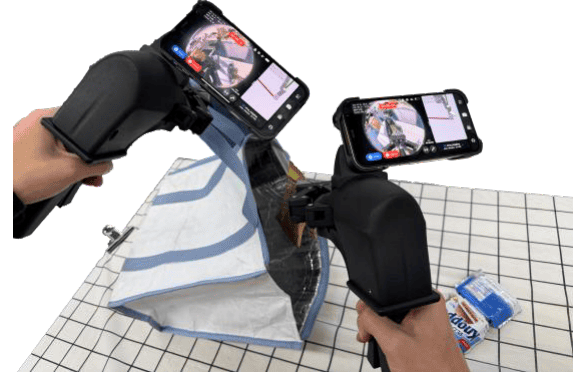

2. Multi-device Spatiotemporal Synchronization: Spatial alignment is achieved via peer-to-peer world-map merging, while temporal alignment synchronizes clocks to 5ms precision, ensuring all sensor packets are strictly aligned for multi-arm learning.

Standard Behavior Cloning suffers from covariate shift, where policies encounter out-of-distribution states due to compounding errors. While interactive methods like DAgger address this by collecting on-policy corrective data, they require physical robot execution—limiting scalability to diverse, unstructured environments.

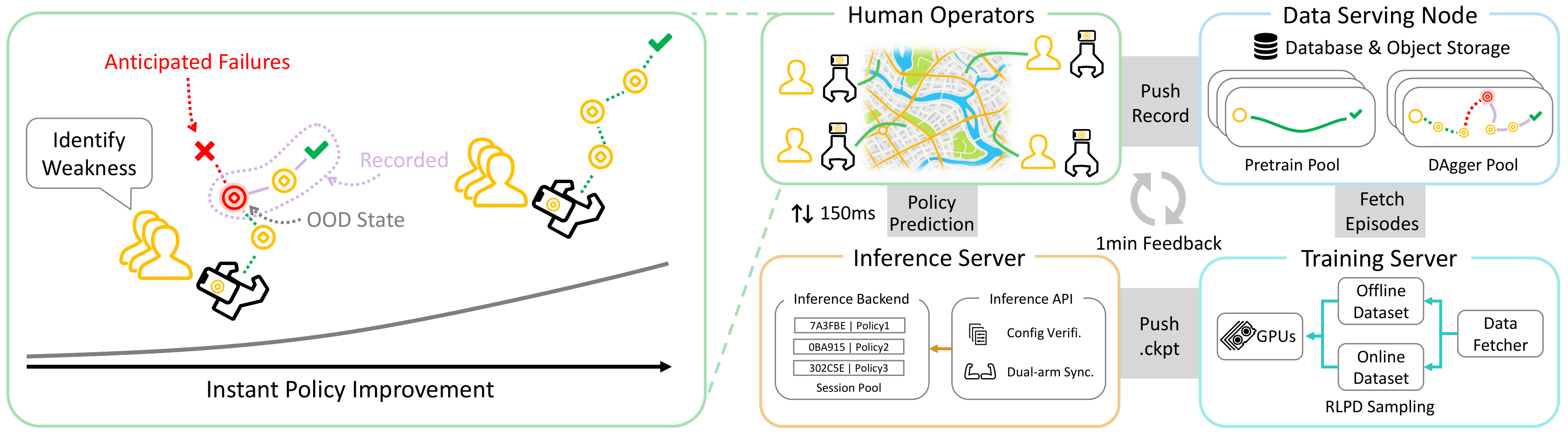

We implement a lightweight client-server architecture where the iPhone streams observations to a remote GPU server. The server maintains persistent model states and returns predicted trajectories with \(\lt\)150ms latency over Wi-Fi, enabling real-time policy evaluation without physical hardware.

To enable non-expert users to identify policy weaknesses, we project predicted trajectories as virtual "coins" onto the real-world view via AR Visual Foresight. Since our camera uses a fisheye lens, we apply distortion-aware vertex displacement based on calibrated intrinsics to ensure spatial alignment. A physical intervention button allows users to query the policy at any state, enabling proactive data collection in policy-weak regions.

Collected demonstrations are immediately uploaded and processed via online finetuning using weighted sampling to prevent catastrophic forgetting. Updated weights are synchronized to the Inference Server every \(N\) steps. This creates a tight feedback loop: users visualize failures in AR, collect corrections, and observe improved policy behavior within minutes.

We measure tracking accuracy by rigidly attaching RoboPocket to the robot end-effector, achieving 2.8mm position error and 0.4° rotation error for single-device setups—outperforming UMI's 6.1mm and 3.5°.

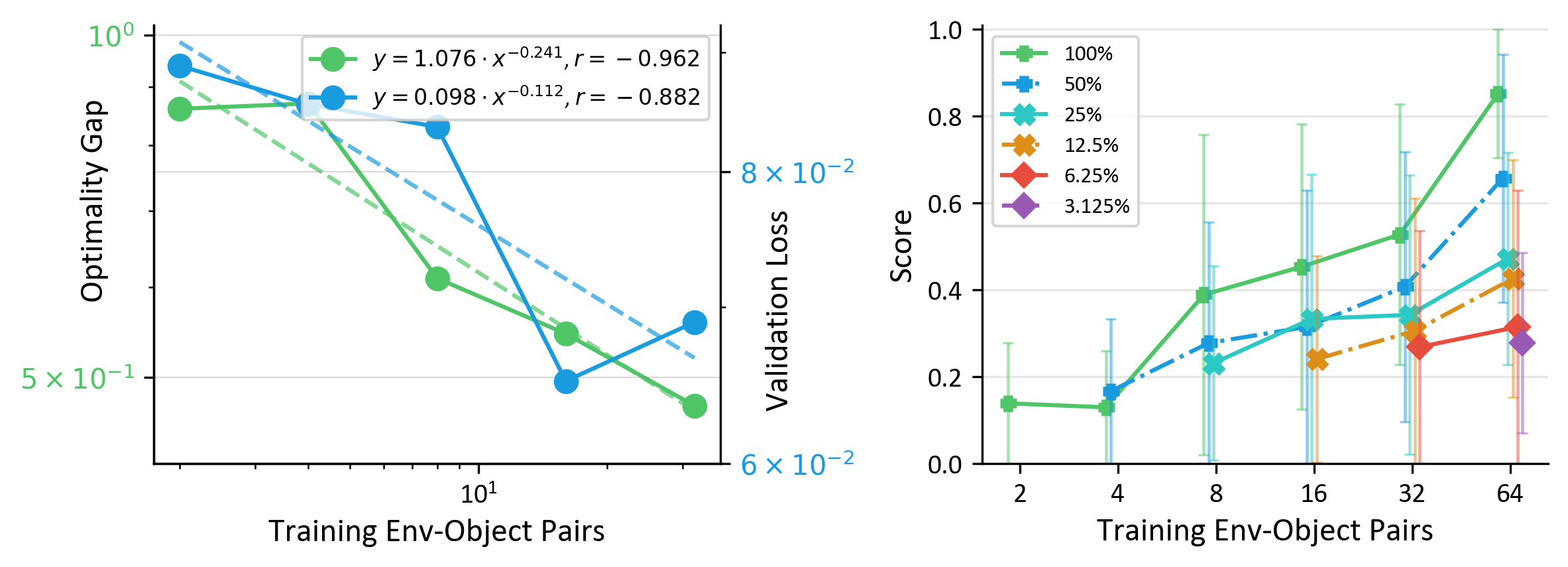

To validate data quality for scaling, we collect 1,600 demonstrations across 64 environment-object pairs for a Mouse Arrangement task, confirming strong power-law correlation (r = -0.962) with data diversity.

We evaluate our Robot-Free Instant Policy Iteration (IL + Instant PI) on four challenging manipulation tasks:

• Block Sorting: long-horizon sequential dependency
• Seasoning Pouring: aggressive wrist rotations
• Towel Folding: deformable object perception
• Snack Bagging: bimanual coordination

We compare our method against three baselines:

• IL Only: fixed datasets of N=100, 200, 300
• IL + Manual PI: expert analyzes robot failures and collects 25-50 corrections
• IL + Offline PI: corrections via RoboPocket with fixed pretrained model

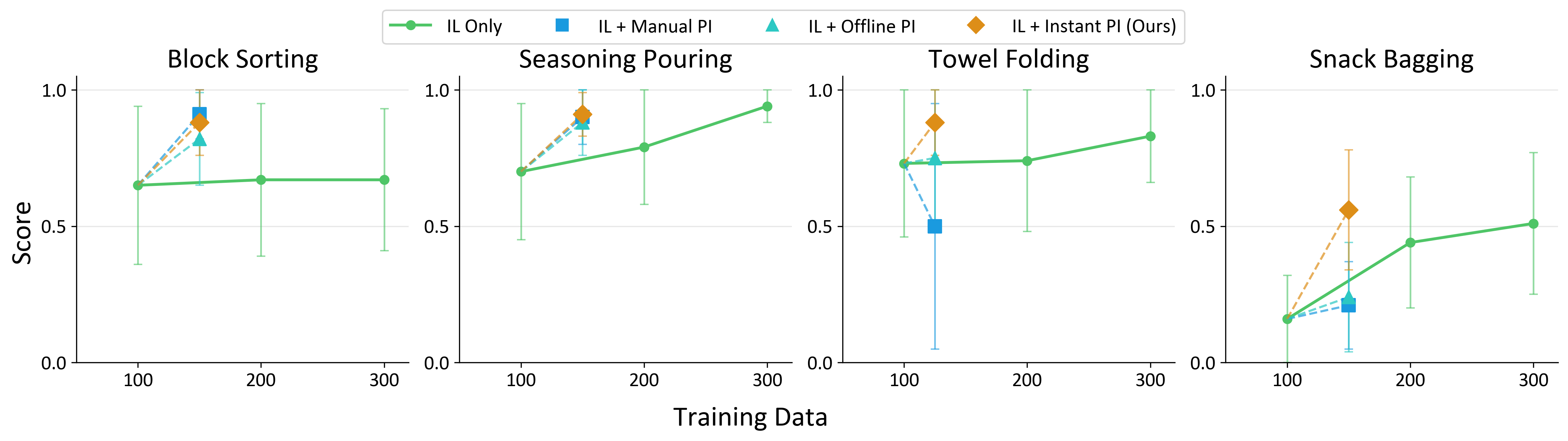

Our method consistently achieves up to 2× data efficiency compared to pure IL baselines across all tasks. For Block Sorting, IL + Instant PI achieves performance comparable to expert manual intervention without requiring a physical robot. In Seasoning Pouring, our approach matches 300 IL performance with fewer data while maintaining significantly lower variance (0.08 vs 0.30 for Offline PI). For Towel Folding, only our method achieves stable gains (0.88), while IL + Manual PI causes performance degradation (0.73 → 0.50). In Snack Bagging, our method efficiently surpasses the 300 IL baseline (0.56 vs 0.51).

To validate the scalability and generalizability of our system in distributed settings, we deploy RoboPocket to four users operating across four distinct scenes. The experimental protocol consists of two phases: First, each user collects 25 demonstrations of the Block Sorting task in their respective environment, resulting in a base dataset of 100 demonstrations used to train an initial policy. Second, all four users simultaneously perform Robot-Free Instant Policy Iteration (IL + Instant PI), each collecting 12 interactive corrections in their local environment.

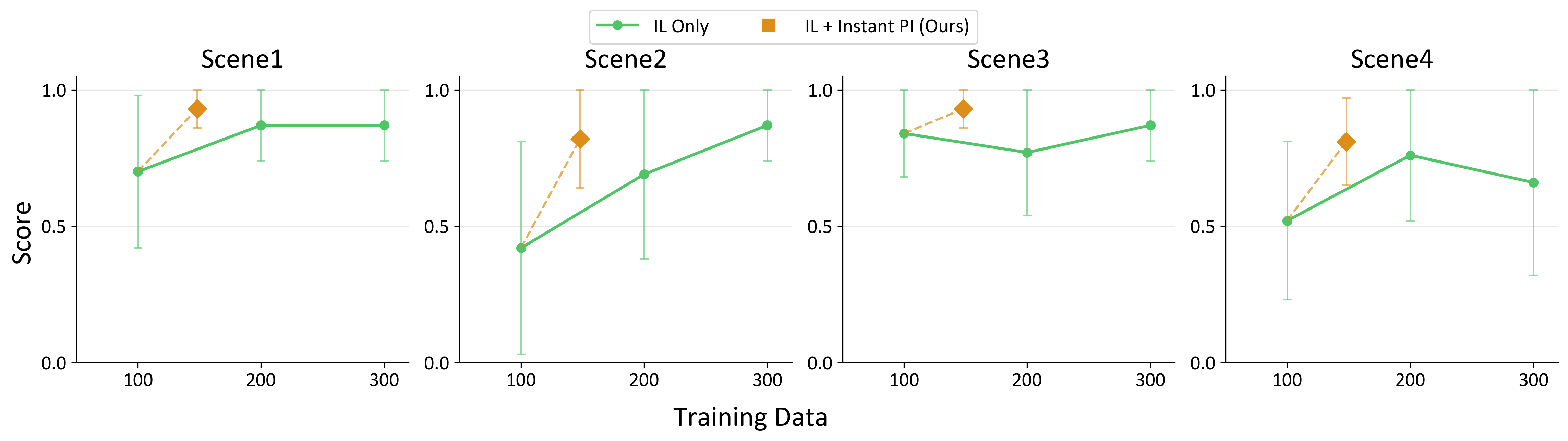

The results demonstrate significant performance improvements across all environments. The base policy exhibits varying performance across scenes, with particularly challenging environments showing lower success rates (Scene 2: 0.42, Scene 4: 0.52). However, after distributed policy iteration with only 12 corrections per user, success rates improved dramatically (Scene 2: 0.42 → 0.82, Scene 4: 0.52 → 0.81). This highlights a critical advantage: while scaling offline data encounters diminishing returns across diverse scenarios, our system enables distributed effective finetuning that achieves robust generalization without requiring physical robot deployment in each environment.

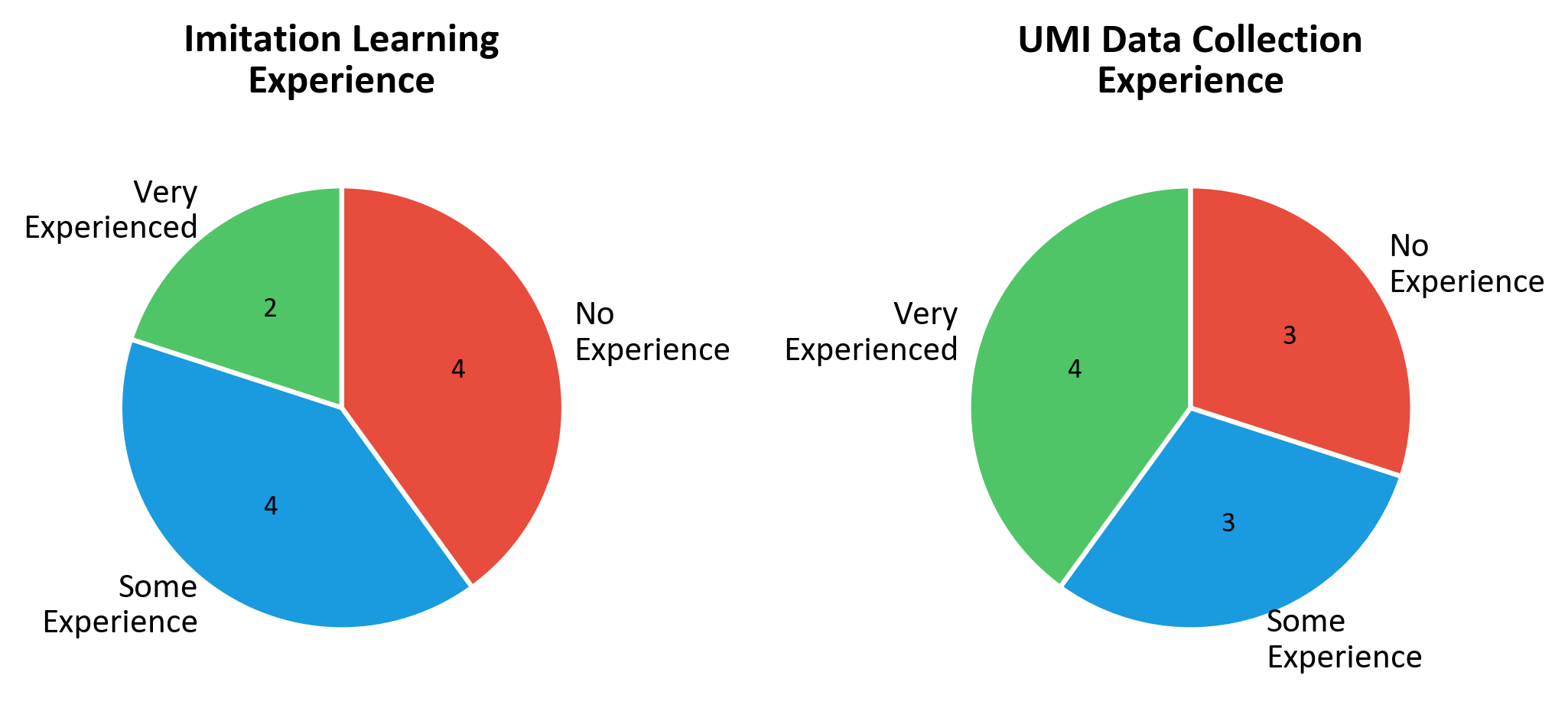

To validate whether RoboPocket enables non-expert users to identify policy weaknesses and collect correction data in a robot-free setting, we conduct a user study with volunteers having varying levels of experience in imitation learning and UMI-based data collection. Participants are invited to perform the Block Sorting task using Robot-Free Instant Policy Iteration.

Regarding Real-time Active Verification, all users report that the real-time constraints and feedback mechanisms are beneficial for data collection, with over half rating them as "Very Helpful". For AR Virtual Foresight, all users agree that our AR Visual Foresight feature effectively assists in discovering model failure cases, with 7 out of 10 participants rating it as "Very Helpful". Most critically, 8 out of 10 users believe that Instant Policy Iteration is highly beneficial for realizing model improvement.

When asked about the most significant advantage of RoboPocket, the majority of users highlight the Real-time Uploading and Online Finetuning mechanisms make the collection process significantly more effective and engaging.

To assess the quality of data collected by non-expert users, we perform a visualization analysis using PCA projection of DINOv2 features extracted from state observations. We compare the state coverage achieved by non-expert participants using Robot-Free Instant Policy Iteration against data collected by experienced experimenters.

The analysis reveals that our system enables non-expert users to achieve state coverage comparable to that of experienced experimenters. This validates that RoboPocket successfully democratizes high-quality data collection by providing guidance through AR Visual Foresight.
